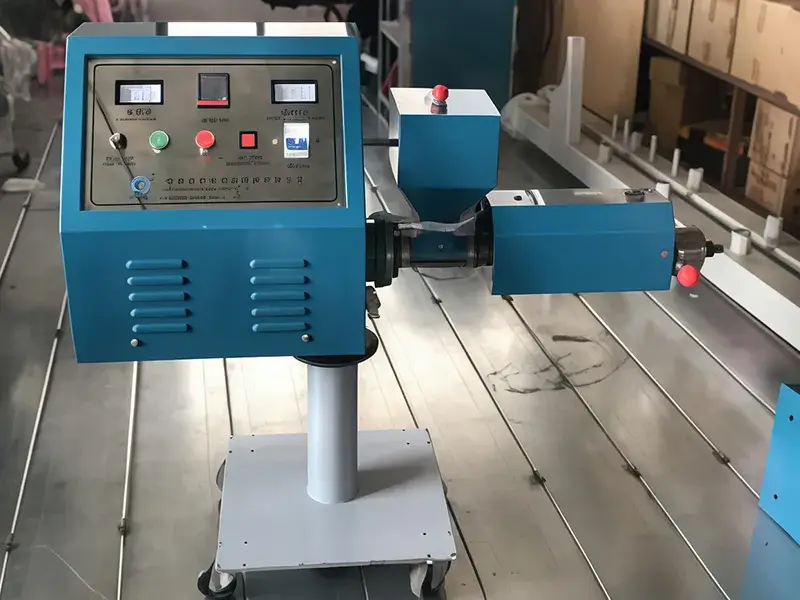

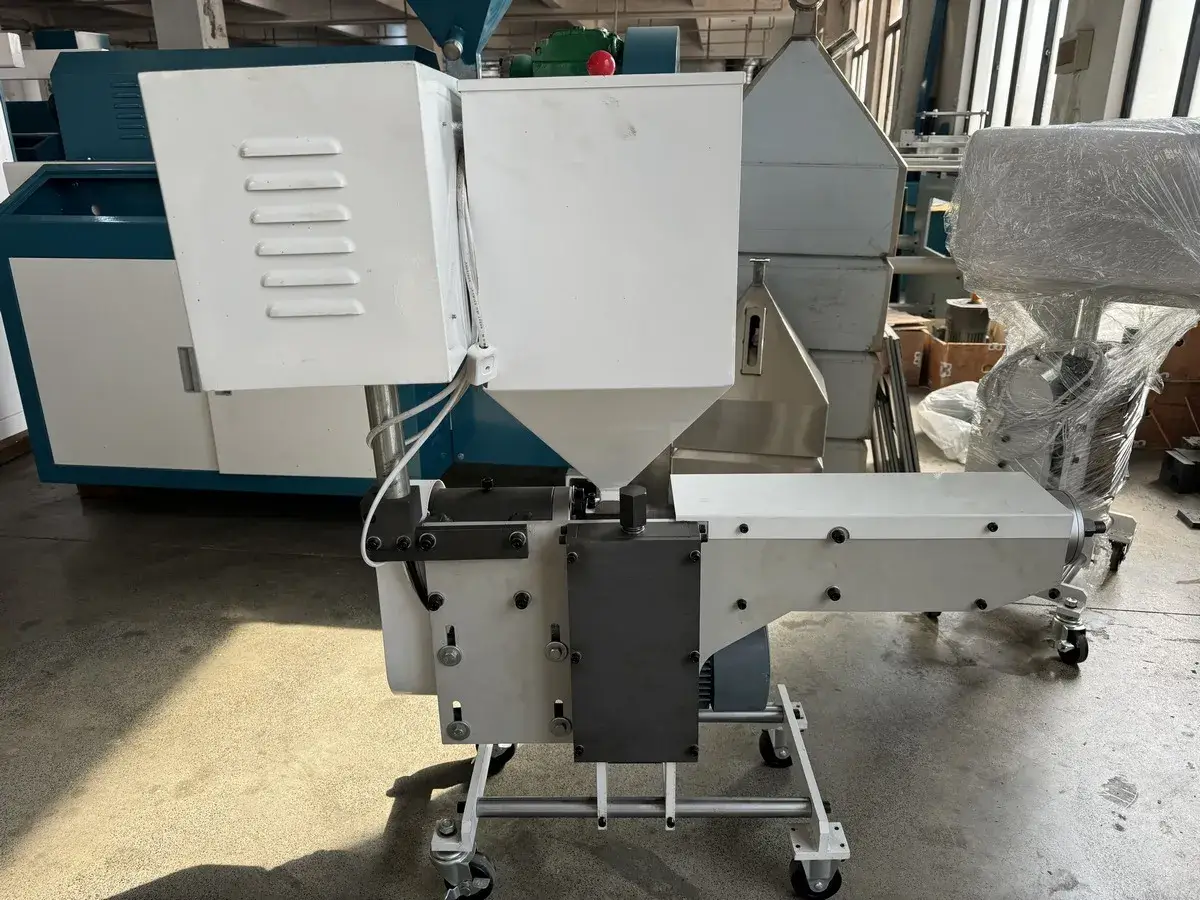

BC-25/30 Color Strip Extruder
The BC-25/30 series color strip extruder is an auxiliary system specifically designed for use with blown film lines. Its core task is to precisely extrude colored lines (such as the common red or blue lines) onto the lip or zipper area of a self-sealing bag for product classification or brand identification. Usually installed beside the main die head, it co-extrudes colored masterbatch with the raw material through a dedicated flow channel, creating a continuous and uniform colored line. It fulfills the industrial need for high-efficiency, low-cost visual identification on transparent packaging.
| Model | |
|
| Diameter of Screw | Φ25mm | Φ30mm |
| Motor | 0.4kW (Geared) | 0.75kW*1 set (Inverter Control) |
| Temperature Meter | 1set | 2 set |
| Ammeter | 1set | 2 set |
| Dimension (L×W×H) | 1100mm*450mm*950mm | 1100mm*450mm*1000mm |
| Weight | 80kg | 125kg |
- Compact Configuration with Independent Control

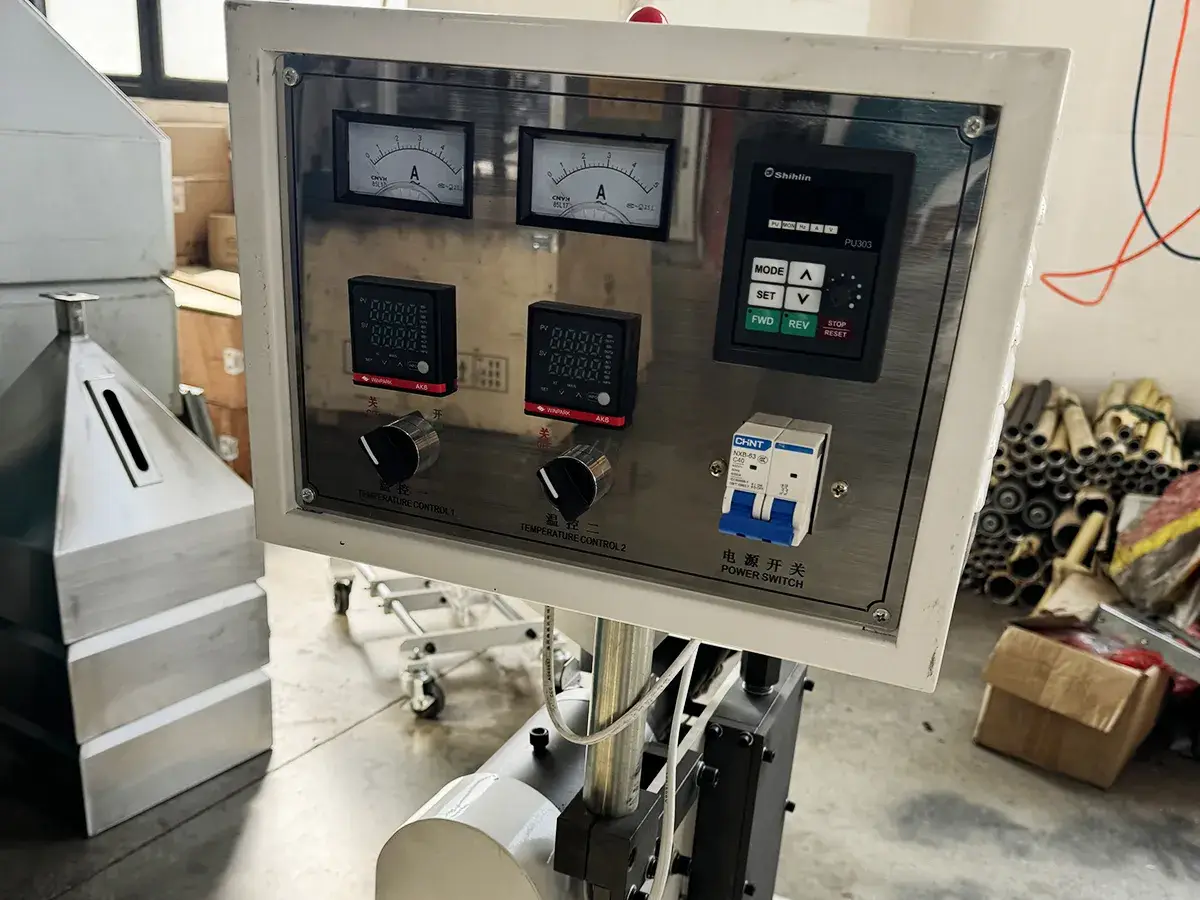

Despite its small footprint (weighing only 80–125 kg), the red line machine is equipped with an independent temperature control system and ammeter. This allows operators to fine-tune the temperature and pressure based on masterbatch characteristics without interfering with the main extruder's operation.
- High Synchronization and Uniform Output
The BC-30 model features a frequency-controlled system (inverter control). This ensures the extrusion speed remains perfectly synchronized with the main blown film line, guaranteeing consistent line width and preventing breakage during startup or high-speed runs.
- Flexible Installation and Minimal Footprint
Occupying less than 0.5 square meters, its compact design allows it to be easily mounted next to various die head brackets without requiring large-scale modifications to existing production lines.
- Low Energy Consumption with High Value-Add
With a motor power of only 0.4 kW – 0.75 kW, this extremely low energy input adds significant visual value to your products, representing a highly cost-effective auxiliary investment for your self-seal packaging line.
