BC-600/800/1000 Gravure Printing Machine

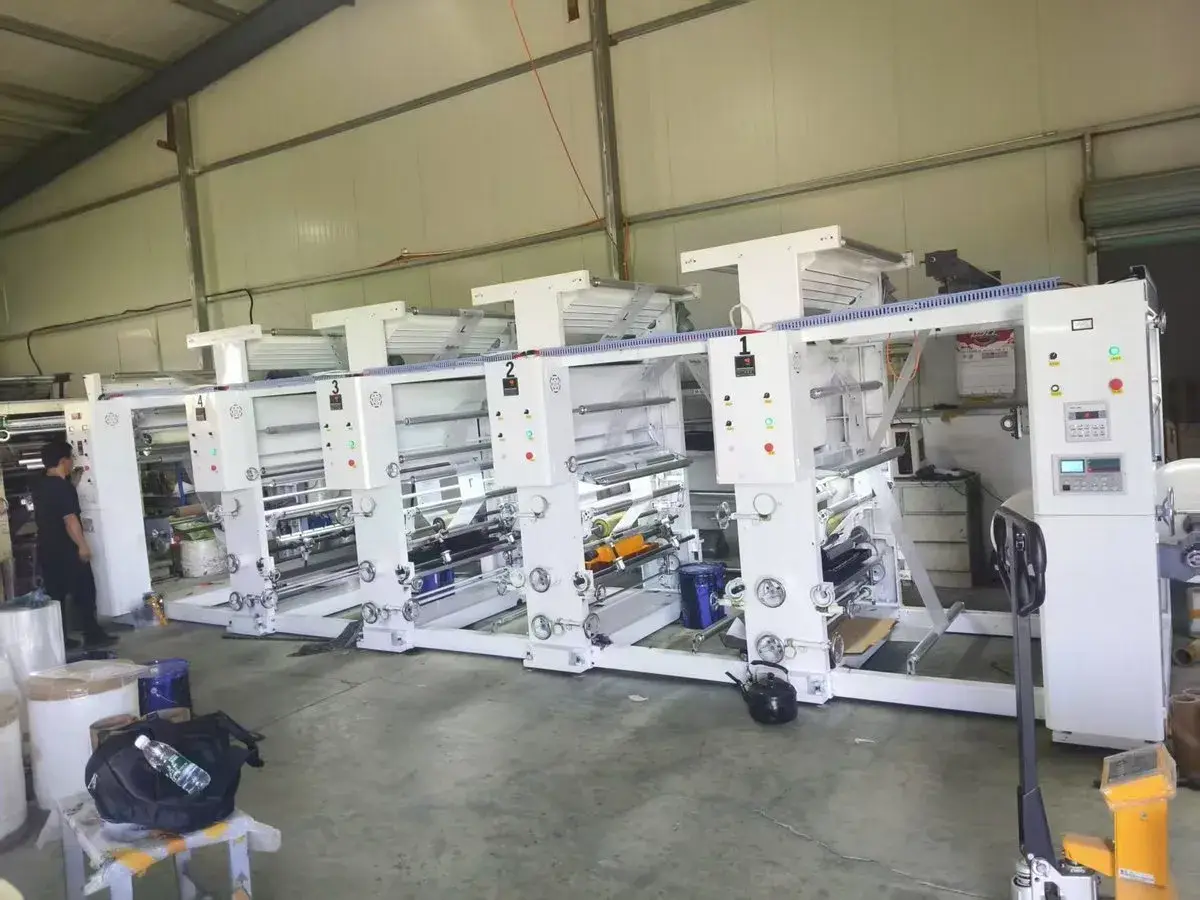

The gravure printing machine is a specialized system designed to transfer ink from recessed plate cylinders onto substrates such as plastic films. This rotogravure press is primarily composed of unwinding and rewinding units, printing sections, and drying systems. During operation, the plate cylinder is fully inked, and a doctor blade scrapes away ink from the non-image areas, leaving ink only in the recesses to be transferred onto the substrate under the pressure of the impression roller. It is an ideal solution for continuous multi-color printing on materials with excellent printing properties, such as BOPP, PET, PVC, PE, aluminum foil, and roll paper.
| Model | |
|
|
| Printing Diameter | 100-320mm | 100-320mm | 100-320mm |
| Printing Width | 600mm | 800mm | 1000mm |
| Winding Diameter | 500mm | 500mm | 500mm |
| Machine Speed | 80 m/min | 80 m/min | 80 m/min |
| Max Printing Speed | 60 m/min | 60 m/min | 60 m/min |
| Register Precision | ±0.2mm | ±0.2mm | ±0.2mm |
| Drying Method | Electrical, steam or oil heating | Electrical, steam or oil heating | Electrical, steam or oil heating |
| Total Power | 44kW | 48kW | 54kW |
| Weight | 5500kg | 6000kg | 6500kg |
| Dimension(L×W×H) | 8800×2300×2300mm | 8800×2500×2300mm | 8800×2700×2300mm |
- Non-stop Material Exchange
Both the unwinding and rewinding systems utilize a turnover dual-station design, allowing for seamless material changes without stopping the plastic film printing machine.
- Superior Drying Efficiency
Equipped with dual-channel integrated ovens and high-capacity centrifugal fans, the multi-color gravure printer ensures rapid ink drying to prevent sticking or ghosting.
- Rapid Registration Adjustment
The system features a 360-degree adjustment gearbox. Operators can quickly adjust the longitudinal registration accuracy electrically or manually while the rotogravure press is in motion.
- Flexible Printing Capabilities
This BOPP PET film printer offers high process flexibility, supporting continuous single-pass printing on both the front and back sides of the material according to customer needs.
