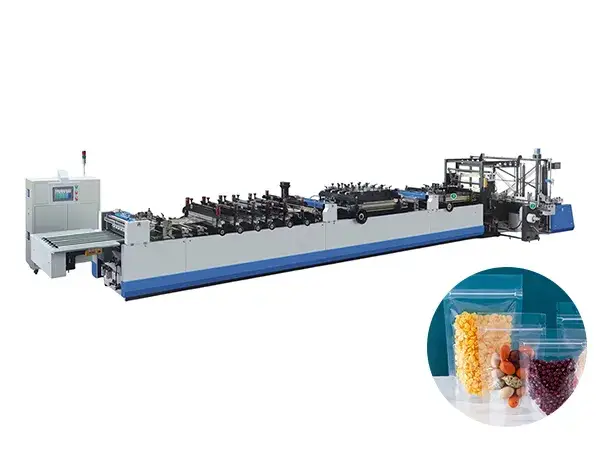

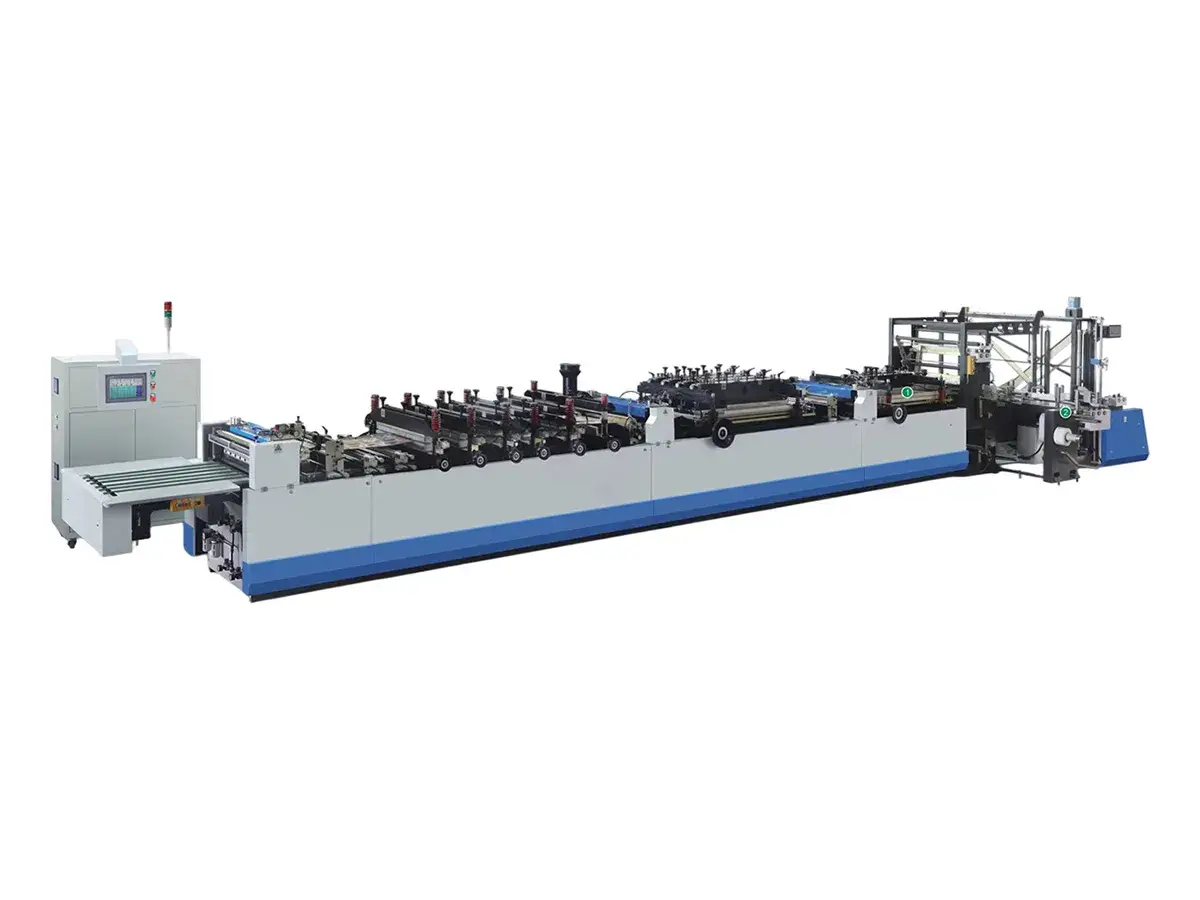

BC-D600 Three-Side-Seal Bag / Doypack Bag Making Machine

This doypack bag making machine is designed to convert composite films into 3-side-seal bags featuring a stand-up bottom and a top resealable zipper. This doypack bag maker is highly versatile, suitable for producing two-layer or multi-layer composite film bags using substrates such as BOPP, OPP, PE, nylon, aluminum foil, and paper. The stand-up pouch production line integrates both zipper application and stand-up pouch forming functions, providing a complete solution for food, snacks, and retail packaging.

Request a Quote
Available Bag Types
  • Available Bag Types
  • Available Bag Types
Features
  • Centralized Intelligent Control: The entire three side seal bag machine utilizes PLC and a centralized human-machine interface (HMI) for control, ensuring stable performance and ease of operation and maintenance.
  • Automated Material Handling: This stand-up pouch equipment features automatic constant tension control for unwinding, LPC automatic edge correction, and AC frequency conversion for constant-speed feeding.
  • Precision Temperature Management: The temperature of the sealing knives is managed via PID adjustment with contactless automatic control, allowing for centralized parameter setting through the HMI.
  • Automated Counting System: The zipper doypack machine includes a counting function that automatically accumulates both individual quantities and batch numbers, featuring a preset capability for production management.
  • Flexible Punching Options: The system supports multiple punching modes, including continuous, interval, and stop settings, with customizable and presettable pressing times.
  • Batch Delivery Function: The working table is equipped with a batch delivery function where the batch quantity can be preset for efficient collection and organization.
Technical Specifications
Model BC-D600
Max Coil Diameter Φ600mm
Max Coil Width 1250mm
Capacity 160 pcs/min
Speed 40mmin
Bag Width 600mm
Bag Length 500-2400mm
Total Power 65kW
Weight 7500kg
Dimension(L×W×H) 12550×2500×1870mm
