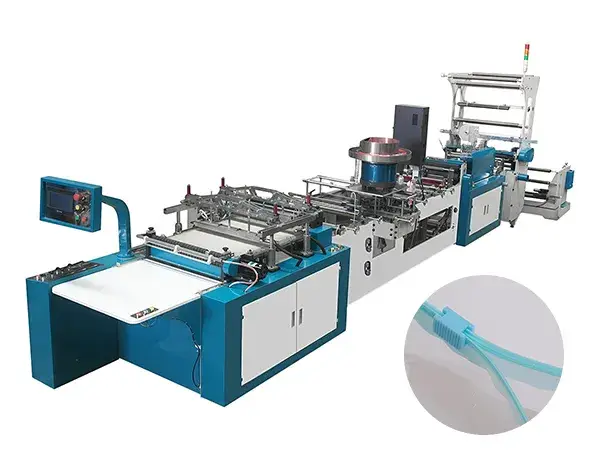

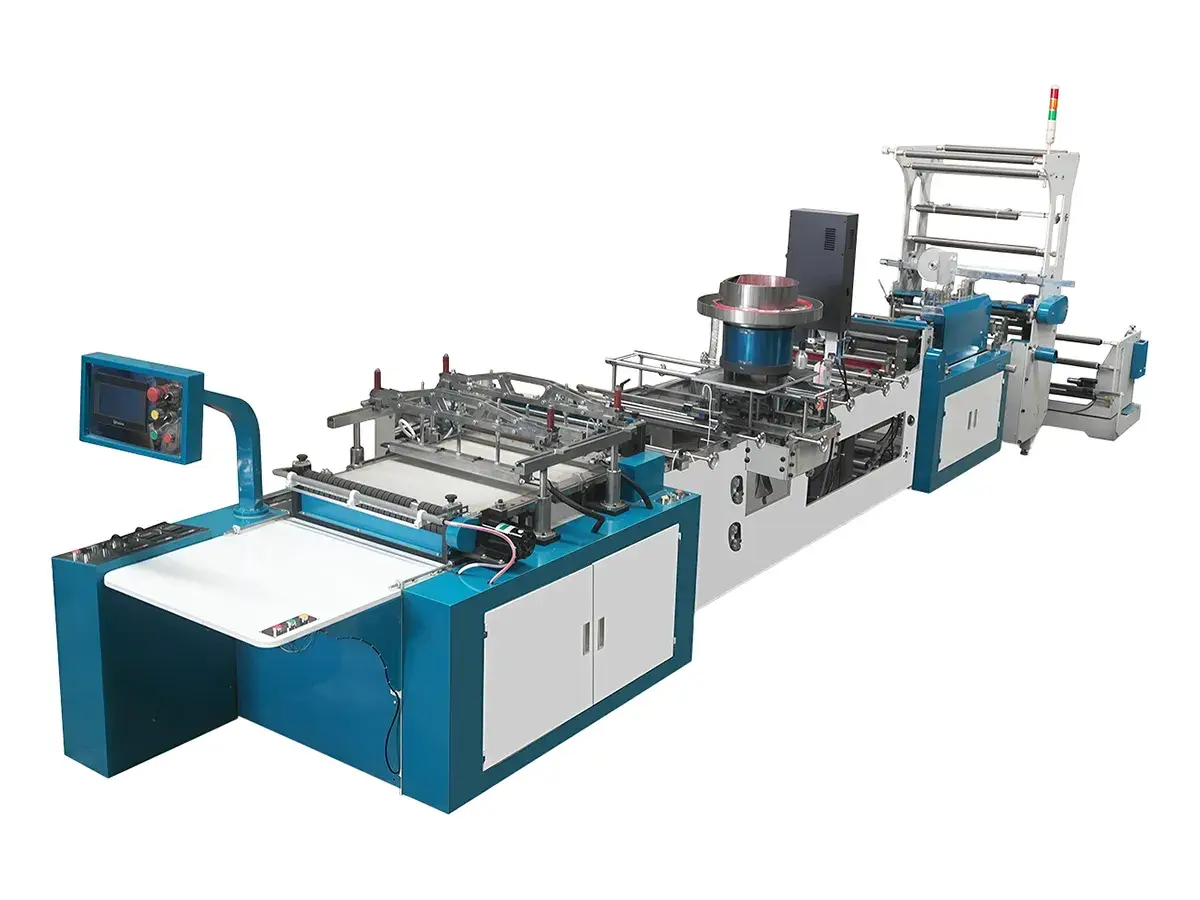

BC-600/800 Food Storage Bag Making Machine
This food storage zipper bag making machine is engineered to produce waterproof and airtight slider zipper bags using food-grade LDPE materials. The food grade bag maker employs a horizontal zipper heat-sealing method, integrating film unwinding, folding, thermal sealing, zipper compounding, automated slider mounting, and precision cutting into a single continuous process. This fresh-keeping bag production line ensures high-integrity seals that prevent leaks and preserve food freshness, making it ideal for the high-demand food storage industry.
Available Bag Types
Features
- Ultrasonic Welding Technology: This ultrasonic zipper bag machine utilizes high-frequency mechanical vibrations to fuse material surfaces instantly, creating a robust seal at high speeds. It performs sealing and cutting simultaneously, ensuring edges are smooth, non-charred, and free from cracks, burrs, or curling.
- Horizontal Zipper Sealing: By adopting a horizontal heating method, the liquid-tight bag equipment allows materials to move flatly without being pulled by rubber rollers. This results in more uniform heat distribution between the zipper and film, providing a more aesthetic finish.
- Automated Material Control: The slider food bag maker is equipped with automatic edge correction, tension control, and a "no-material" stop function. These features guarantee smooth unwinding and rewinding throughout the production cycle.
- Precision Slider Handling: Utilizing a vibratory bowl track, this food storage bag production line automatically screens and corrects slider orientation. Synchronized push and stop cylinders ensure each slider enters the track smoothly for accurate mounting.
- Advanced Servo Control System: This packaging bag making system utilizes Delta servo motors and an LED touch-screen interface. This configuration provides superior stability and higher output while maintaining a low error rate.
Technical Specifications
| Model | |
|
| Raw Material | LDPE | LDPE |
| Speed | 60-100 pcs/min | 40-80 pcs/min |
| Bag Width | 100-350mm | 100-600mm |
| Bag Length | 100-450mm | 100-650mm |
| Film Thickness | 0.04-0.15mm | 0.04-0.15mm |
| Servo Motor Power | 1.5kW | 2kW |
| Main Motor Power | 1.5kW | 1.5kW |
| Heating Power | 3kW | 3.8kW |
| Discharging Motor Power | 0.75kW | 0.75kW |
| Ultrasonic Power | 2kW | 2kW |
| Feeding Motor Power | 0.75kW | 0.75kW |
| Film-fold Motor Power | 0.55kW | 0.55kW |
| Cooling Power | 0.55kW，0.25kW | 0.55kW,0.25kW |
| Total Power | 15kW | 18kW |
| Dimension (L×W×H) | 8000*1500*2000mm | 8500*1650*2000mm |
| Voltage | 50HZ, 380V | 50HZ, 380V |
