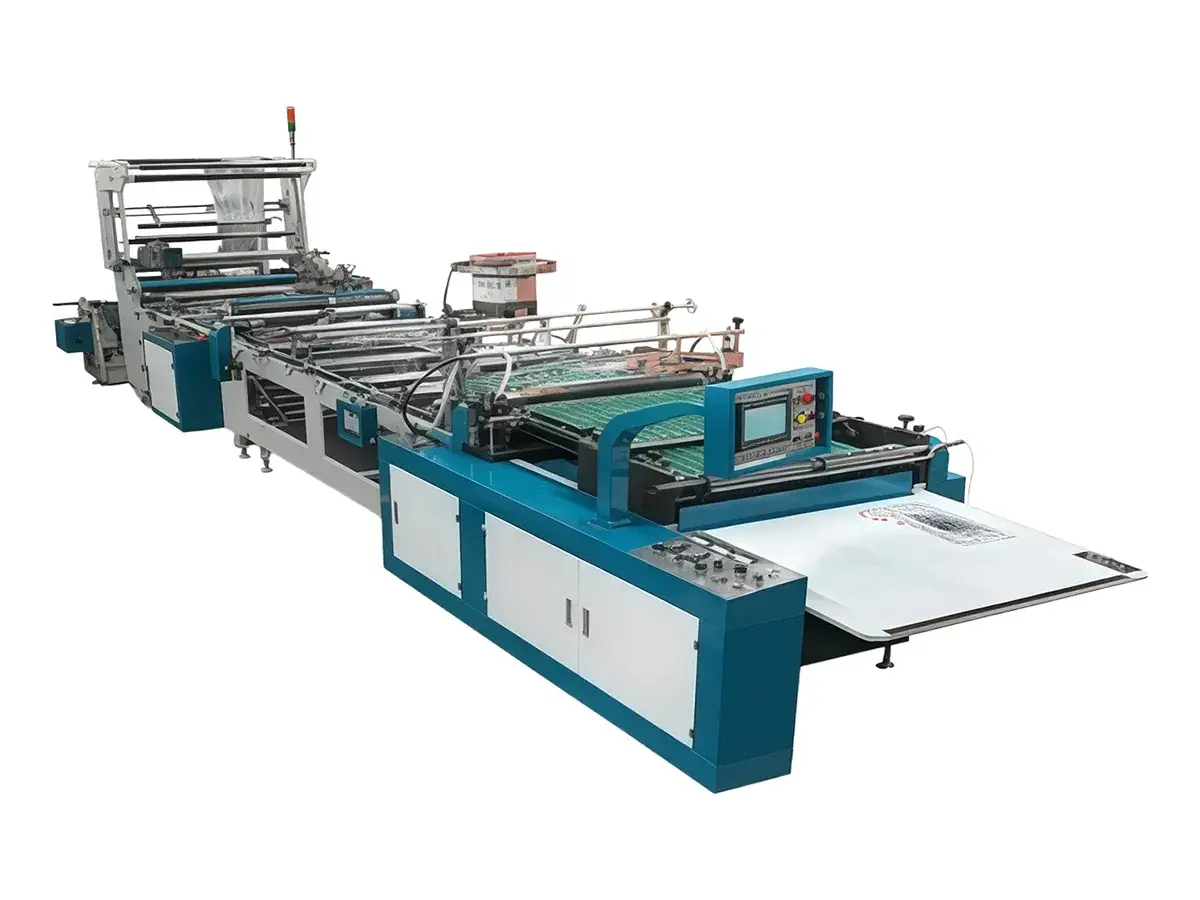

BC-800/900/1000 Horizontal Plastic Garment Bag Making Machine

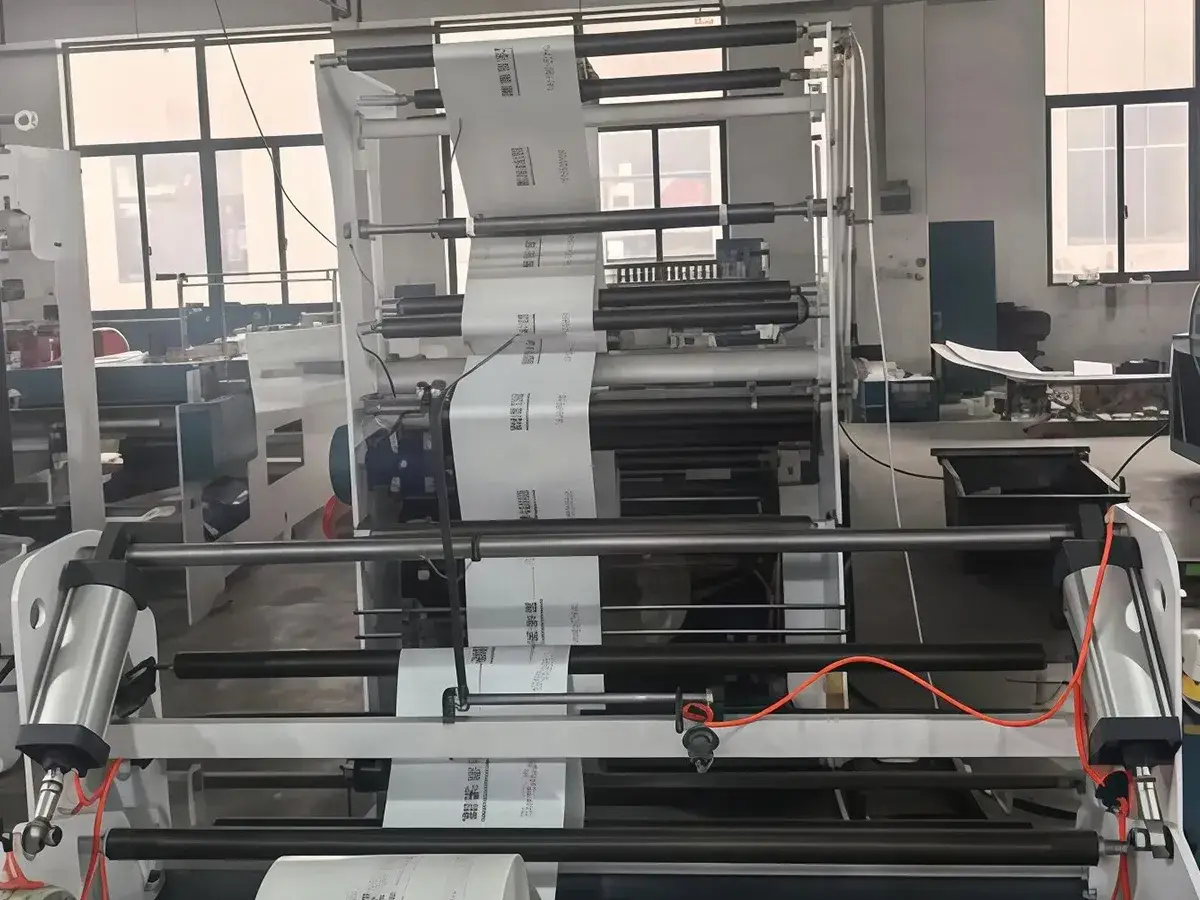

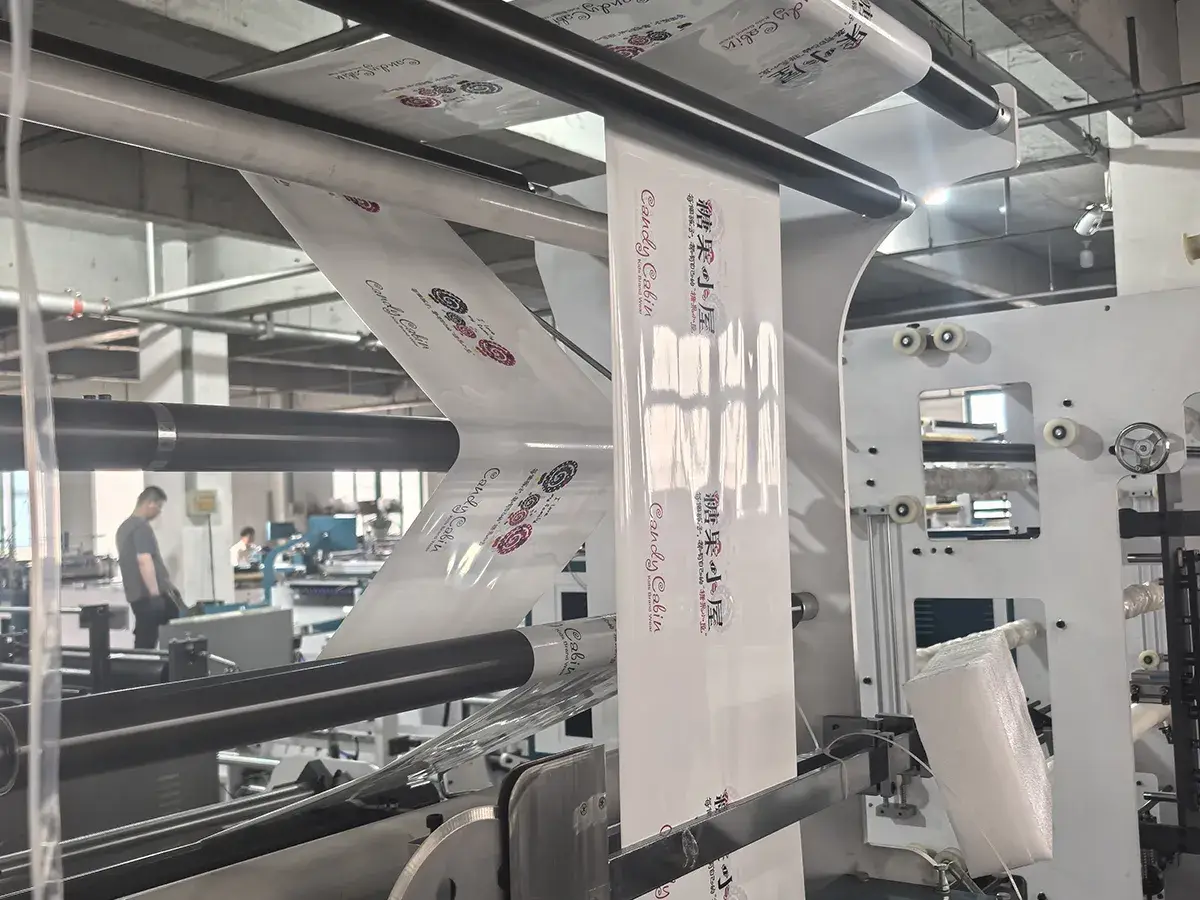

This horizontal plastic garment bag machine is a specialized production system for the high-efficiency manufacturing of plastic bags with slider closures, featuring a horizontal structural design. The process begins with the unwinding unit unfolding the film, which then passes through a stretching device for pre-treatment to ensure film flatness and tensile strength. Subsequently, the film enters the heat-sealing unit where the zipper is fused onto the material evenly using a horizontal sealing method, creating a secure bond. Finally, the automatic slider zipper bag maker utilizes a cutting device to separate the continuous web into individual bags, integrated with an automated function to mount the slider heads onto each unit.
- High-Stability Servo Control
Powered by a Delta servo system, this horizontal packaging machine maintains stable film tension and precise length control, significantly increasing productivity while minimizing material waste.

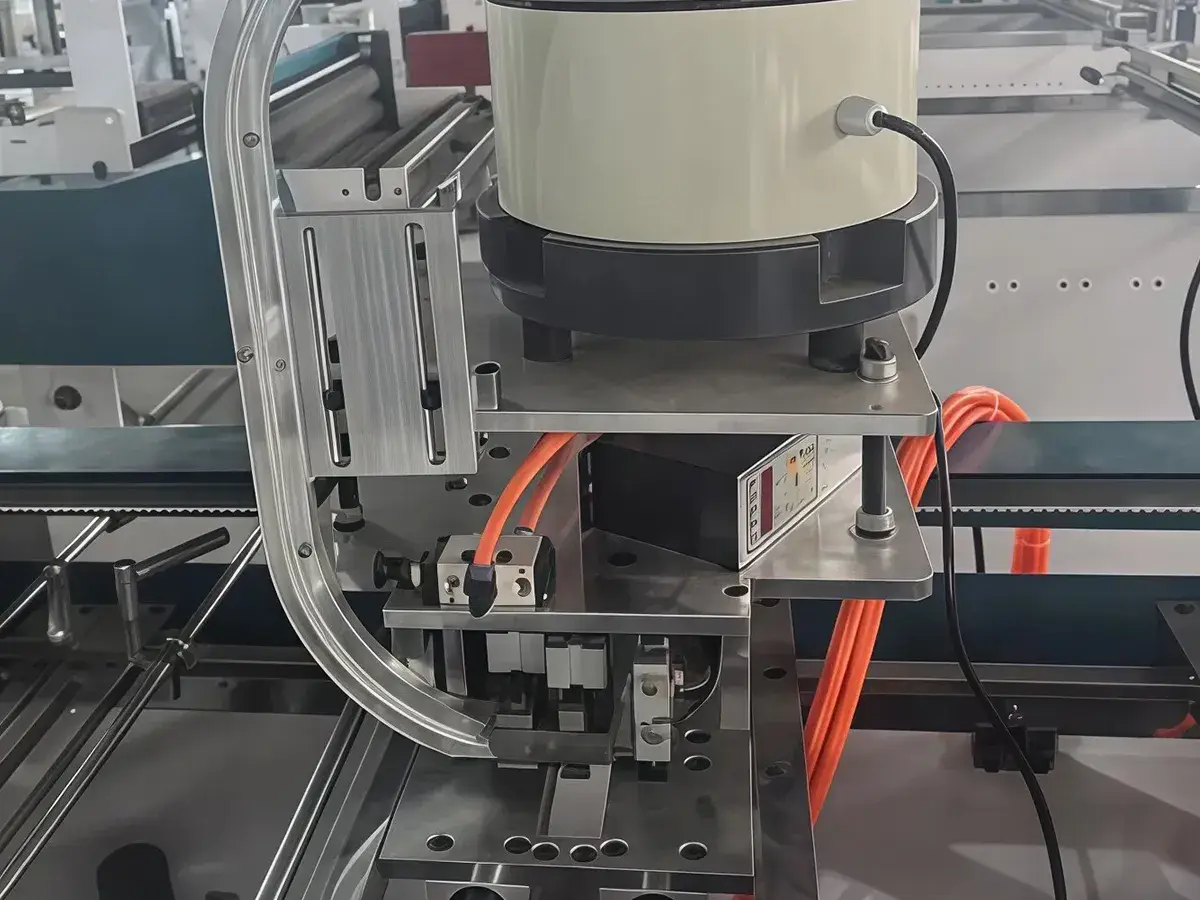

- Automated Slider Mounting System
Equipped with a vibratory bowl and high-precision cylinders, the slider bag production line automatically screens, orients, and mounts sliders onto the zipper track with exceptional accuracy and speed.

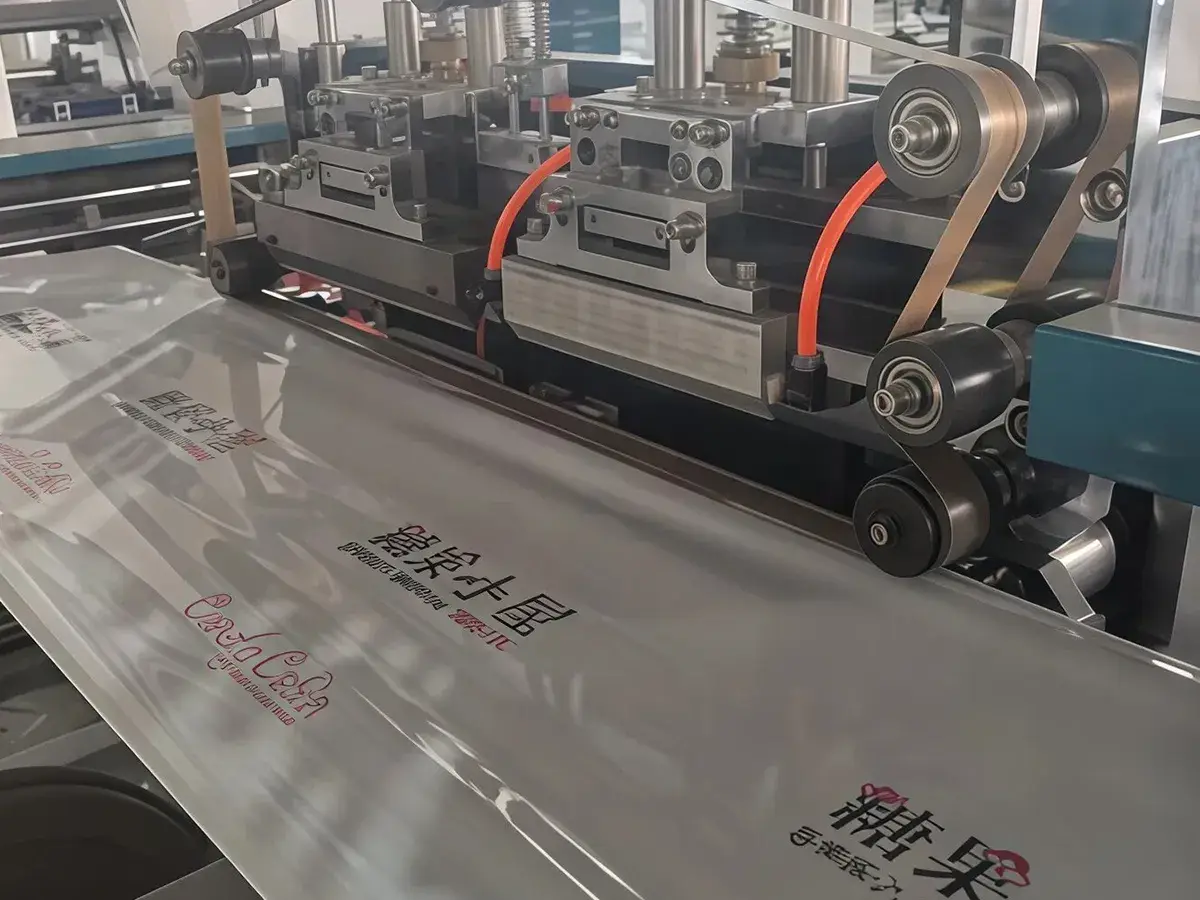

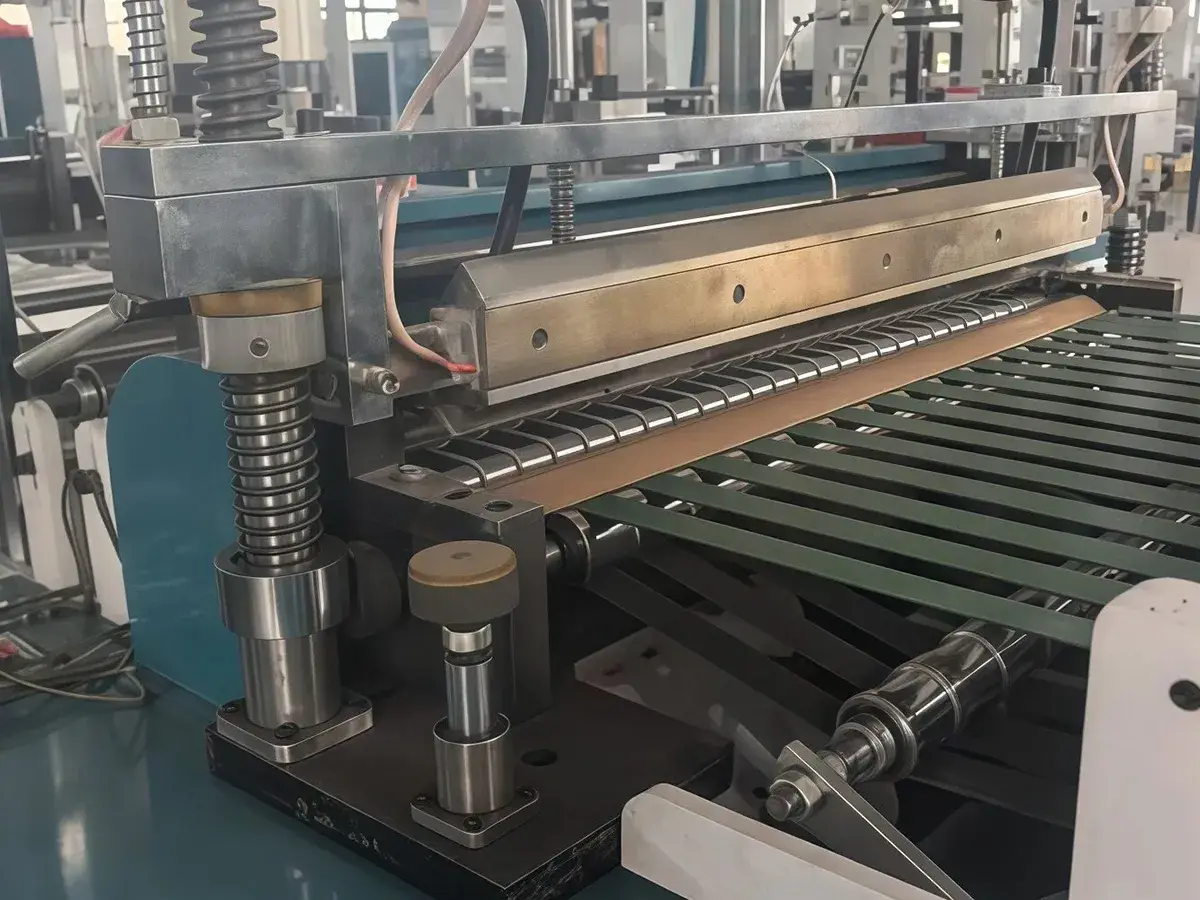

- Horizontal Structure for Stable Sealing
This automatic slider zipper bag maker adopts a horizontal layout, which allows for uniform heat distribution between the zipper and the material. This design avoids roller interference, ensuring a flat and smooth sealing line.
- Intelligent Safety Monitoring
The slider zipper bag equipment includes an automatic "no-material" stop function and edge correction sensors, ensuring the production remains continuous and the error rate is kept at a minimum.
| Model | |
|
|
| Raw Material | LDPE/PP | LDPE/PP | LDPE/PP |
| Speed | 40-110PCS/min | 40-100PCS/min | 40-90PCS/min |
| Bag Width | 100-600mm | 100-600mm | 100-700mm |
| Bag Length | 100-650mm | 100-750mm | 100-850mm |
| Total Power | 18kW | 18KW | 22KW |
